360W 300W Single Output Switching Power Supply 12V DC Universal Black White Color

Name: 360W 300W Single Output Switching Power Supply 12V DC Universal Black White Color
Brand: Alrightpower
Price: 1 USD

Wholesale 360W 300W Single Output Switching Power Supply 12V DC Universal Black White Color from china suppliers

Brand Name : Alrightpower

Model Number : AP-PN360

Certification : UL,FCC,CB,CE,UKCA,CCC,PSE,KC,RCM etc

Place of Origin : China

MOQ : 500PCS

Payment Terms : T/T, Western Union

Supply Ability : 50000PCS/Day

Delivery Time : 30 working days

Packaging Details : Individul Pe Bag Packing or others

Item : 360w 300W Single Output Switching Power Supply

Input : 100-240V 50/60HZ

Output : 360W Max

Material : ABS+PC

Color : Black, White Or Others

Protection : OCP, OLP, OVP And Others

Logo : Fullpower Or Custom Made

AC Plug : AU UK US EU CN JP KR Plug

DC Plug : Any DC Plugs

Warranty : 3 years

Contact Now

360w 300W Single Output Switching Power Supply 12v Dc Universal Switching Power Supply

深圳市盈源电子有限公司 Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7^th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China
Specifications			PRODUCTS PICTURE
360W BATTERY CHAEGER l AC Input Voltage Range:AC100V～AC240V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.98 l Output Voltage:12V～60V l Output Current:15A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes,X,Y,Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC(-40ºF～+185ºF) l Dimensions (mm):(L)183х(W)122.5х(H)69 l Net Weight: 2kg
TYPICAL MODEL LIST
Charger Model	Rated Input Voltage	Battery Standard Voltage	Maximum charging Current	Maximum charging Current
AP-PN360CH01460150	100-240	12	14.6	15
AP-PN360CH02920100	100-240	24	29.2	10
AP-PN360CH04200070	100-240	36	42	7
AP-PN360CH05460060	100-240	48	54.6	6
AP-PN360CH01200150	100-240	12	14.6	15
AP-PN360CH02400100	100-240	24	29.2	10
AP-PN360CH03600070	100-240	36	42	7
AP-PN360CH04800060	100-240	48	54.6	6
SPECIFICATIONS
AC Input Voltage Range:	AC100V～AC240V	Shock & Vibration:	10～50HZ 2G 10 minutes,X,Y,Z /60 minutes
AC Input Frequency:	45～65HZ	Operating Temperature:	-20ºC～45ºC(-20ºF～+113ºF)
AC Power Factor Correction:	≥0.98	Storage Temperature:	-40ºC～+85ºC(-40ºF～185ºF)
Output Voltage:	12V～60V	Dimensions (mm):	(L)183х(W)122.5х(H)69
Output Current:	15A(Max)	Net Weigh:	2kg
Full Load Efficiency:	≥90%	Certifications	UL CE FCC RoHs
Protections	Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it
	Short- circuit Protection When Short Circuit happened ,charger will turn off
	Reverse Connection Protection When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery
	Battery Broken protection When some battery broke ,battery can not reach 100% full-charged ,charger will be shut down automatically
Application	Forklift/ground washer/electric motorcycle and so on

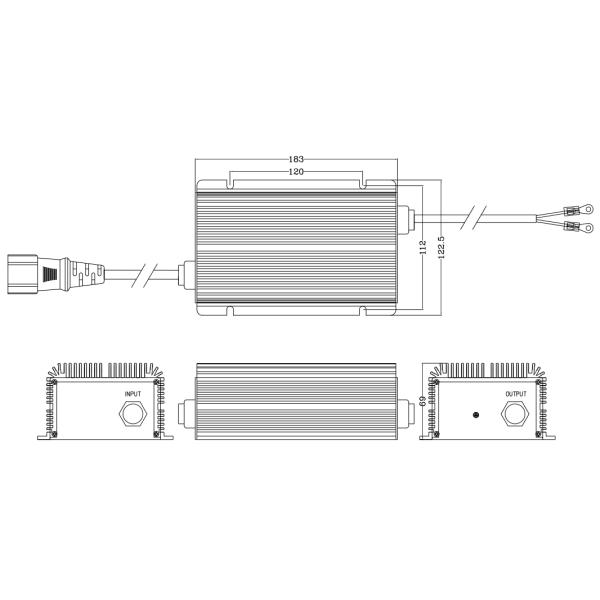

MECHANICAL SPECIFICATION			PACKING DETAILS
			2kg/pcs 12pcs/Carton Carton size: 580480185mm

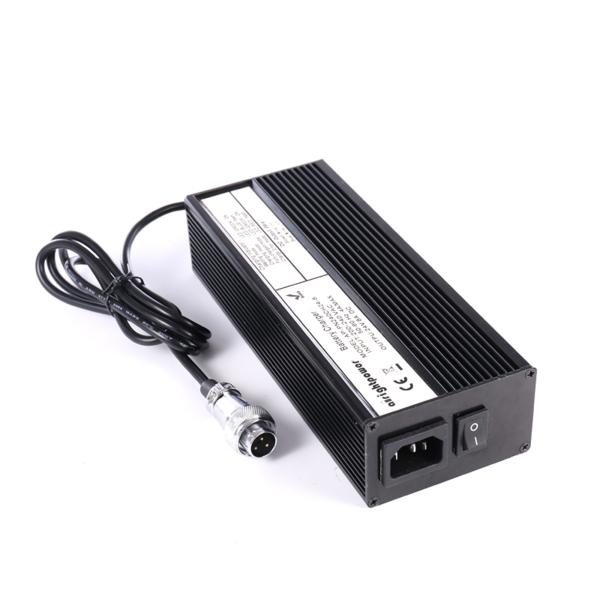

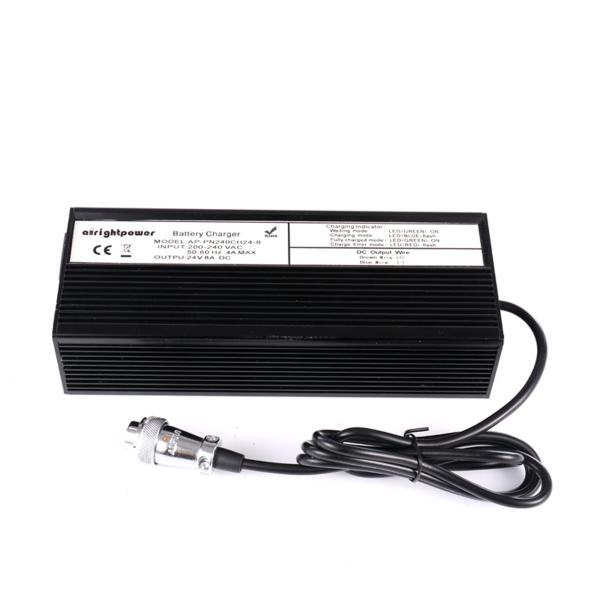

Product Pictures

360W 300W Single Output Switching Power Supply 12V DC Universal Black White Color

Certification

Shipping

FQA:

Q1: Are you a manufacturing factory?

A1: Yes, We are a lithium battery manufacturer from China since 2006. You are welcome to visit our factory and production process.If the quantity is suitable, we accept OEM/ODM.

Q2: What’s your product range?

A2: We focus on Lithium-ion battery, Lithium iron phosphate (LiFePO4) battery for residential and commercial energy storage system, telecom tower, UPS, AGVs, golf carts, boat, RVs, camping, electric vehicles, etc.

Q3: What is the production time for your lithium battery?

A3: The sample delivery time is about 5-10 days. The bulk order delivery time is about 25-35days according to quantity.

Q4: Can I buy one or two units for the sample first?

A4: Yes. Samples are welcome for the LiFePO4 battery. Please contact our sales manager to place the order.

Q5: Can you give us a discount?

A5: We can of course talk to specific numbers, but let’s make sure we’re on the same page about this solution being a good fit for your needs.

Q6: How do you guarantee the quality?

A6: Always a pre-production sample before mass production. Always final Inspection before shipment.

Q7: Why we can choose you?

A7: Reliable-- Our certifications like MSDS, CE is our commitment to quality and safety for our lithium batteries.

Professional--We provide battery solutions and technical support for more than 16 years.

Factory-- We have factory, so have competitive price.
